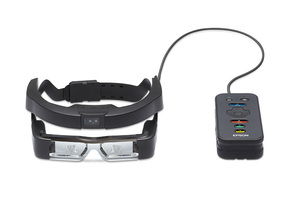

Moverio Pro BT-2000 Smart Headset

Experience a smarter workplace with the Moverio Pro BT-2000

Featuring a series of technology and design innovations built specifically for the industrial workplace, the revolutionary MOVERIO Pro BT 2000 smart headset is poised to improve operational efficiency and ultimately change how work gets done.

Model: V11H725020

Find Accessories Support

Overview

Built for Enterprise — safety-glass compliant (ANSI Z87.1), dust and waterproof (IP54 certified), and capable of withstanding a 1.2m drop, meaning it can be worn in tough environments
Hands-Free Operation — wearable display with built-in voice commands and the possibility to create user interfaces based on head-tracking and gesture-control
Remote Visual Guidance — the centered high-resolution 5MP front-facing camera enables the sharing of a worker’s point of view to get help on complex tasks
Long Operating Time — hot swappable batteries allow for all-day usage without outages
Designed for Long Wearability — adjustable headband and forehead pad for a more comfortable fit; no pressure applied to the nose
Accurate Positioning, even indoors — in addition to GPS, the device features a built-in Epson IMU (inertial measurement unit): a high-precision sensor with a margin of error much less than conventional sensors.
Simple Operation — physical keys with intuitive shapes and layout that can be used even when wearing protective gloves, along with built-in ambient light sensor to adjust the brightness of the display automatically to maximize visibility
Enhanced Connectivity — dual band (2.4 & 5GHz) wireless connectivity, Bluetooth 3.0 and select BLE protocols

Specifications

Wearable Device Details:

Model Type: See-Through OTG (Over the Glasses)Power Supply Voltage Controller: 5 V, 900 mA via micro USB terminalBattery Life: Approx. 6 hrs (Video mode with Android at 25°)Weight Headset: Approx. 88 g (without light Shielding / without harness)Power Supply Voltage AC Adapter: 100 - 240 V AC +/- 10%, 50/60 Hz with micro USB cableBattery Type: Li-Polymer [2720] mAhDimensions Headset: 170 mm x 185 mm x 32 mm (without light shielding)Dimensions Controller: 120 mm x 55 mm x 19 mmWeight Controller: Approx. 124 gOSD and Android: Languages in Android OS 4.0.4Manual: EN/JA/FR/ES/PT/DE/IT/NL/ZHT/KO/GB/DA/FI/NO/SV/CS/PL/HU/TR/RU/AR/HE

Optical:

Driving Method: Poly-silicon TFT active matrixDisplay Size: 0.42 inch wide panel (16:9)Pixel Number: 518,400 dots [(960x540) x 3]Refresh Rate: 60 HzField of View: 23°Screen Size - Projected Distance: 80 inch at 5 m - 320 inch at 20 mColour Reproduction: 24 bit-color (16.77 million colors)

General:

Temperature: 5°C – 35°C; 41°F – 95°F; 20% – 80% Humidity

Sensors:

Camera: VGAGPS: Yes, in ControllerCompass: Yes, in both Headset and ControllerGyroscope: Yes, in both Headset and ControllerAccelerometer: Yes, in both Headset and ControllerMicrophone: Yes

OS Platform:

Pre-installed Applications:

Live wallpaper
Moverio Apps Market
Moverio Air
Moverio Mirror (for WiFi Miracast)

OS Version: Android [4.0.4]OS Update: Via network

Connectivity Wearables:

Wireless LAN: IEEE 802.11b/g/n with WiFi MiracastBluetooth: 3microUSB: USB2.0 (On-The-Go)

CPU & Memory:

CPU: TI OMAP 4460 1.2Ghz Dual CoreInternal Memory: 8 GBRAM: 1 GBExternal Memory: microSD (max.2GB) / microSDHC(max.32GB)

User Interface:

Function Key: Power (lock), Home, Menu, Back , Function (Brightness, 2D/3D), Volume (+/-), ResetTouch-pad Pointing Method: Capacitive Multitouch

Supported File Formats:

Video: MP4 (MPEG4+AAC / Dolby Digital Plus), MPEG2 (H.264+AAC / Dolby Digital Plus)Audio: WAV, MP3, AAC, Dolby Digital Plus3D Supports: Side by Side

Sound Output:

Head-set: 2.0 mW / 16 ohm 3.5 Φ StereoSurround: Yes, Dolby Digital Plus
