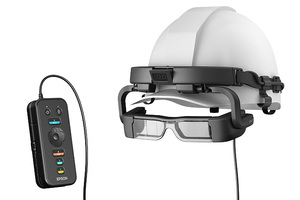

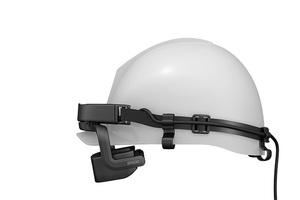

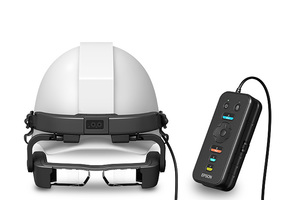

Moverio Pro BT-2200 Smart Headset

Durable smart headset built for industrial, hands-free applications.

The Moverio Pro BT-2200 smart headset features key technologies designed for the industrial workplace, including use with most front-brim safety helmets. Ideal for enterprise applications, this durable headset features safety-glass compliance and a dust-resistant design. With built-in voice commands, it supports hands-free interfaces with head tracking and gesture control. Its high-resolution front-facing camera and remote visual support makes it easy to help with complex tasks, while hot swappable batteries ensure all-day usage without interruption. With built-in GPS and highly accurate sensors, the BT-2200 has all you need to change how work gets done.

Model: V11H853020

Find Accessories Support

Overview

Ready for Industrial Use — unique design allows it to be worn with most front-brim safety helmets
Built for Tough Environments — ANSI Z87.1 safety-glass compliant, dust and water resistant (IP54 rating), and capable of withstanding a 1.2 m (3.94') drop
Hands-Free Operation — wearable display with built-in voice commands; supports interfaces with head tracking and gesture control
Remote Visual Support — high-resolution 5MP front-facing camera enables workers to share their point of view for help on complex tasks
Long Operating Time — hot swappable batteries allow for all-day usage without interruption
Sensors for outdoor/indoor positioning — built-in GPS and Epson IMU (inertia measurement unit); high-precision sensor with a uniquely low margin of error
Simple operation — control keys with intuitive shapes — can be used when wearing protection gloves; built-in ambient light sensor to automatically adjust display brightness
Enhanced Connectivity — dual band (2.4 & 5GHz) wireless connectivity, Bluetooth^® 3.0 and select BLE protocols

Eco Features

RoHS compliant
Recyclable product¹
Epson America, Inc. is a SmartWay™ Transport Partner²

Better Products for a Better Future™
For more information on Epson's environmental programs, go to www.epson.com/environment

Specifications

Wearable Device Details:

Model Type: See-Through OTG (Over the Glasses)Power Supply Voltage Controller: 11 [VDC] 1.64 [A] (when AC adapter connected)Battery Life: Approx.6 hrs (Epson evaluating condition)Weight Headset: Approx. 88 g (without light Shielding / without harness)Power Supply Voltage AC Adapter: 100 - 240 V AC +/- 10%, 50/60 Hz with micro USB cableBattery Type: Li-Polymer 1240 [mAh] x 2Dimensions Headset: 206 mm x 96 mm x 109 mm (without the head band)Dimensions Controller: 70 mm x 57 mm x 35.3 mm (without protruding section)Weight Controller: 265 g (without batteries, 1 battery is approx. 50 [g])OSD and Android: Languages in Android OS 4.0.4Manual: EN/JA/FR/ES/PT/DE/IT/NL/ZHT/KO/GB/DA/FI/NO/SV/CS/PL/HU/TR/RU/AR/HE

Optical:

Driving Method: Poly-silicon TFT active matrixDisplay Type: Polysilicon Thin Film Transistor Active MatrixDisplay Size: 0.43 inch wide panel (16:9)Pixel Number: Horizontal 960 x vertical 540 [dots]Refresh Rate: 60 HzField of View: 23° (Diagonal)Screen Size - Projected Distance: 64 inch support (virtual viewing distance 4 m)Colour Reproduction: 24 bit-color (16.77 million colors)

General:

Temperature: 5°C – 35°C; 41°F – 95°F; 20% – 80% HumidityOperating Temperature: 0 to 40°C, humidity 20 to 80% (no condensation)

Sensors:

Camera: 5 Mega [pixel] (Capture image resolution x2 Still image: 2596x1948, Movie: 1920x1080、Depth sensing: 640x480)GPS: Yes, in HeadsetCompass: Yes, 3[axis] in ControllerGyroscope: Yes, in both Headset and ControllerAccelerometer: Yes, in both Headset and ControllerMicrophone: Yes

OS Platform:

Pre-installed Applications: Settings, Gallery, Browser, CameraTest, BLEBeacon, FMP_PXP, SelfDiagnosis, SEViewer, VoiceCommand, Downloads, SearchOS Update: Via network

Connectivity Wearables:

Wireless LAN: IEEE 802.11b/g/n with WiFi MiracastBluetooth:

Bluetooth 3.0 HSP/A2DP/HID/OPP/SPP/AVRCP
Bluetooth 4.0 LE PXP/FMP　*Can be used Epson specified beacon device.

microUSB: USB2.0 (On-The-Go)

CPU & Memory:

CPU: TI OMAP 4460Internal Memory: 8 GBRAM: Main Memory 1 GB / User Memory 8 GBExternal Memory: microSD (max.2GB) / microSDHC(max.32GB)

User Interface:

Function Key: Power (lock), Home, Menu, Back , Function (Brightness, 2D/3D), Volume (+/-), ResetTouch-pad Pointing Method: Capacitive Multitouch

Supported File Formats:

Video: MP4 (MPEG4+AAC), MPEG2 (H.264+AAC)Audio: WAV, MP3, AAC3D Supports: Side by Side

Sound Output:

Head-set: 2.0 mW / 16 ohm 3.5 Φ StereoSurround: Yes, Dolby Digital Plus
