How do I connect my product to my wireless network using the product's control panel?

• See below.

  Selecting Wireless Network Settings from the Control Panel

  Your product control panel allows you to select or change wireless network settings.

  To install your product on a wireless network, follow the instructions on the Start Here sheet and install the necessary software by downloading it from the Epson website. The installer program will guide you through the network setup.

  Note: Breakdown or repair of this product may cause loss of network data and settings. Epson is not responsible for backing up or recovering data and settings during or after the warranty period. We recommend that you make your own backup or print out your network data and settings.

  1. Press the  home icon, if necessary.

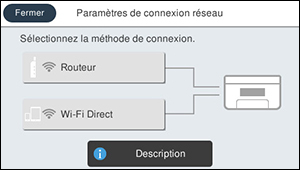

  2. Select the icon. You see a screen like this:


  3. Select Router.
  4. Select Start Setup, Change Settings, or Change to Wi-Fi connection, depending on your current connection settings.
  5. Select Wi-Fi Setup Wizard.
  6. Select the name of your wireless network or select Enter Manually to enter the name manually. Use the displayed keyboard to enter your network name.

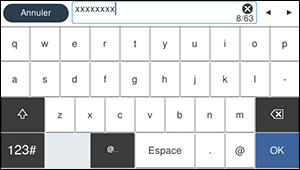

  7. Select the Enter Password field and enter your wireless password using the on-screen keyboard.



     Note: The network name and password are case sensitive. Be sure to correctly enter uppercase and lowercase letters, and numeric or special characters.

     • To move the cursor, press the left or right arrows.
     • To change the case of letters, select .
     • To delete the previous character, select .
     • To enter numbers and symbols, select .
     • To enter a space, select Space.
  8. Select OK when you finish entering your password.
  9. Confirm the displayed network settings and select Start Setup to save them.
  10. Do one of the following:
      • If setup was successful, select Close to exit.
      • If setup was unsuccessful, select Print Check Report to print a network setup report or select Re-enter to re-enter your network name and password.
  11. Press the  home icon to return to the Home screen. The Wi-Fi icon displayed on the LCD screen indicates your wireless connection status. If the product is not connected to the network, you may have selected the wrong network name or entered the password incorrectly. Repeat these steps to try again.

      If you are printing from a computer, make sure you installed the network software as described on the Start Here sheet.
