Home For Work Projectors Large Venue PowerLite Pro G6870NL XGA 3LCD Projector without Lens
DISCONTINUED

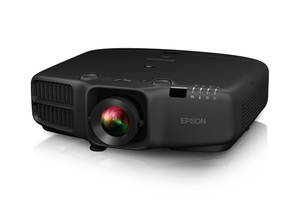

PowerLite Pro G6870NL XGA 3LCD Projector without Lens

The ultra bright large-venue projector with HDBaseT™

The PowerLite Pro G6870NL large-venue projector delivers XGA resolution with bright, uncompromising image quality. Offering 3x Brighter Colours* than competitive models, Epson® 3LCD projectors ensure brilliant images. Ideal for conference rooms, auditoriums or houses of worship, the G6870NL shines with 7000 lumens of colour brightness and 7000 lumens of white brightness1. The projector offers simple integration with HDBaseT connectivity, and supports Crestron®, AMX®, Extron® XTP® and Control4® protocols. Installation is easy, with five optional lenses, built-in Edge Blending, 360-degree projection and projector setting tools. Users can simultaneously project from multiple sources, plus remotely monitor and control projectors.

3x Brighter Colours with Epson*
Brilliant image quality requires high colour brightness. Epson 3LCD projectors have 3x Brighter Colours than leading competitive projectors*. Delivering 7000 lumens of colour brightness1 and 7000 lumens of white brightness1, the PowerLite Pro G6870NL uses 3LCD, 3-chip technology for brilliant images with true-to-life colour.

    • Projection System: High-aperture Epson 3-chip 3LCD technology
      Native Resolution: XGA (1024x768)
      ColoUr Brightness: 7000 lumens1
      White Brightness: 7000 lumens1
  • Model: V11H698920
REPLACEMENT PRODUCT :
Pro G7805 XGA 3LCD Projector with Standard Lens
Pro G7805 XGA 3LCD Projector with Standard Lens
Model: V11H753120 View Main Product Page Learn More
  • 3x Brighter Colours and reliable performance — 3LCD, 3-chip technology*
  • One measurement of brightness is not enough — look for both high colour brightness and high white brightness.
    The PowerLite Pro G6870NL has:
      Colour Brightness: 7000 lumens1
      White Brightness: 7000 lumens1
  • Brilliant images — XGA (1024 x 768) resolution for presentations, videos, digital signage and more
  • Versatile connectivity — easily integrate with any system; supports the latest connectivity options, including HDBaseT, HDMI and DisplayPort
  • Seamless control protocol support — compatible with Crestron, AMX, Extron XTP and Control4 Simple Device Discovery Protocol (SDDP)
  • Five optional lenses with lens shift — including rear-, middle- and long-throw lenses for complete flexibility and easy exchange (lenses are not included)
  • Easy installation features — built-in Edge Blending, 360-degree installation flexibility and simple cloning functions
  • Advanced collaboration features — simultaneously project from multiple devices over the network with Multi-PC projection, or side-by-side from different sources with Split Screen2
  • Convenient remote management — remotely monitor and control the projector; includes scheduling function
  • Industry-leading service and support — long-life air filter and easy maintenance tools, plus peace-of-mind ownership with next-business-day replacement3


IMPORTANT SAFETY INFORMATION ABOUT USAGE ENVIRONMENTS FOR MOUNTED PROJECTORS ►

What's in the box:

  • Epson PowerLite Pro G6870NL XGA Projector
  • Lens NOT Included
  • Power cable
  • Computer cable (VGA)
  • Projector remote control with batteries
  • User manual CD
  • EasyMP® software CD
  • Quick Setup Sheet
  • Lens lock screw

Specifications Projector:


Projection System: High-aperture Epson 3-chip, 3LCD technologyProjection Method: Front / rear / ceiling mountDriving Method: Epson Poly-silicon TFT Active MatrixPixel Number: 786,432 dots (1024x768) x 3Colour Brightness - Colour Light Output: 7000 lumens1White Brightness - White Light Output: 7000 lumens1Aspect Ratio: Supports 4:3, 16:9, 16:10Resolution: 1024 x 768 (XGA)Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050Lamp Type: 380 W UHELamp Life:
  • Normal mode: Up to 2000 hours2
  • ECO mode: Up to 4000 hours2
Brightness Uniformity: 90%Pixel Arrangement: Cross stripeThrow Ratio Range: (For Standard Lens) 1.29 – 2.35Size - projected distance: 50" – 300"Keystone Correction:
  • Horizontal: ±30 degrees
  • Vertical: ±30 degrees
Colour Reproduction: Up to 1 billion colours

Effective Scanning Frequency Range:


Pixel Clock, Horizontal,Vertical:
    Pixel Clock
  • 13.5 MHz – 162 MHz (up to UXGA 60 Hz)
  • Horizontal
  • 15 KHz – 92 KHz
  • Vertical
  • 50 Hz – 85 Hz

General:


Temperature: 32° to 113° F (0° to 45° C)Weight: 21.5 lb (with standard lens)Security:
  • Security cable hole
  • Lens lock
  • Kensington® lock provision,

Projection Lens:


Type: (For Standard Lens) Manual focus / ZoomF-number: (For Standard Lens) 1.65 – 2.55Focal Length: (For Standard Lens) 21.28 mm – 37.94 mmZoom Ratio: (For Standard Lens) Optical zoom 1.0 – 1.8Lens Shift:
    (For Standard Lens)
  • Vertical: ±57 degrees
  • Horizontal: ±30 degrees

Projector Details:


Display Performance:
  • NTSC: 480 line
  • PAL: 576 line
  • (depends on observation of the multi-burst pattern)
Input Signal:
  • NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  • 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
  • Pixel works: video chip
  • 3D Y/C separation, noise reduction motion compensated
  • Interlace-Progressive conversion (2 – 2, 3 – 2 film detection)
Interfaces:
  • HDMI x 1
  • DisplayPort x 1
  • Computer: D-sub 15 pin x 1
  • Video-1: 5-BNC x 1
  • Video-2: RCA x 1
  • Composite video: BNC x 1
  • S-Video x 1
  • Audio-in: Mini stereo x 3
  • Audio-in: RCA (L & R) x 1
  • Network: RJ-45 x 1, 100 Mbps
  • USB Type-A x 1, Type-B x 1
  • Serial: RS-232c
  • Hardwire Remote jack x 1
  • Monitor-Out: D-sub 15 pin x 1
  • HD BaseT x 1
Fan Noise:
  • Normal mode: 39 dB
  • ECO mode: 31 dB

Projector Dimensions:


Including feet: With standard lens: 19.88" x 15.94" x 6.73" (W x D x H)Excluding feet and lens: 19.88" x 15.04" x 5.67" (W x D x H)

Remote Control:


Features: Power, source search selection, computer, video, A/V mute, freeze, user ID, auto, aspect, colour mode, number, page up and down, E-zoom, volume, help, menu, enter, esc andpointer functionsOperating Distance: 49 ftOperating Angle:
    Right / Left:
  • Front: ±60 degrees
  • Rear: ±30 degrees
  • Upper / Lower:
  • Front: ±20 degrees
  • Rear: +10 to -45 degrees

Power:


Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz ACPower Consumption:
  • Normal mode: 526 W
  • ECO mode: 421 W
  • Communication on: 3.3 W standby
  • Communication off: 0.41 W standby

Notes:

* Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Leading Epson 3LCD business and education projectors compared to leading 1-chip DLP projectors, based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.

1 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Consult your user manual for input combinations.

3 Expedited shipping not available in all areas. Road Service orders must be in by 3 p.m. Eastern Time for Next-Business-Day delivery.

Specifications Notes:
1 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.


Epson business and education projectors have 3x Brighter Colours than their leading competitive 1-chip DLP projectors. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Based on NPD data for June 2013 through May 2014 and PMA Research data for Q1 through Q3 2013.
