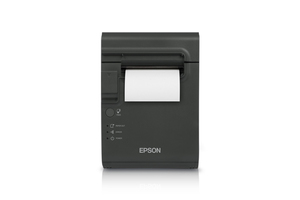

TM-L90 Plus Liner-free Compatible Label Printer

The TM-L90 Plus liner-free compatible label printer delivers all the features you need to print "stay stuck" labels quickly and easily. It prints labels at a speed of up to 90mm/second and receipts at up to 170mm/second at a crisp 203 x 203 dpi, supports variable length label output and accepts label rolls up to 4" in diameter. It is approved for use with Epson Tested Media.

Request More Info

Find Accessories Support

TM-L90 Plus Liner-free Compatible Label Printer

Request More Info

Overview
Specifications
Accessories
Support

Overview

Cost-effective liner-free label printing for QSRs and food service
Built-in USB for flexible connectivity
For use with Epson Tested Media
Fast printing speeds of up to 170mm/sec for receipts and 90mm/sec for labels
Special print options reduce paper usage up to 30%
Automatic media type and paper width detection
Low power consumption
One-year limited warranty

Specifications

Print Other:

Printing Technology: Thermal line printingPrint Resolution: 203 x 203 dpiPrint Speed: 170 mm/sec (thermal receipt); 90 mm/sec (label media)

General:

Dimensions: 5.5" x 7.9" x 5.8" (140 mm x 203 mm x 148 mm)Weight: Approx. 4.19 lbs (1.9 kg)Safety Approvals:

Environmental standards: WEEE, RoHS compliant
EMI standards: VCCI class A, FCC/ICES-003 Class A, CE marking, Canada EMI,AS/NZS CISPR22 Class A
Safety standards: UL, CSA, TÜV (EN60950)

Case Colour: Epson Dark Grey, Epson Cool White

Print Fonts:

Column Capacity: 64/48 columnsCharacter Size: 1.13 x 2.13 / 1.5 x 3.0 / 1.0 x 2.0 mm (W x H)Character Set: 95 Alphanumeric, 37 International, 128 x 11 GraphicBarcode: UPC-A, UPC-E, JAN8 (EAN), JAN13 (EAN), ITF,CODE39, CODE93, CODE128, CODABAR, PDF417,MAXICODE, QR Code

Media Handling:

Tested Media: Visit www.epson.ca/lfctestedmedia for a complete list.Width: 40 mm, 80 mm, 58 mmThickness: 2 mil to 8 mil, depending on media typeRoll Diameter: 4" (102 mm)Auto Cutter: Autocutter: 2 million cuts (receipts), 1 million cuts (labels)

Connectivity:

Standard Connectivity: Built-in USB interface + another selection; serial RS-232c, parallel IEEE-1284, Ethernet, Powered USB, WirelessData buffer 4K or 45 bytes

POS Details:

Reliability: MTBF 360,000 hours, MCBF 70 million lines (receipts), 35 million lines (labels)D.K.D.: 2 drawersOptions: PS-180 AC adapter, paper roll spacer, wall-hanging bracket WH-10.
