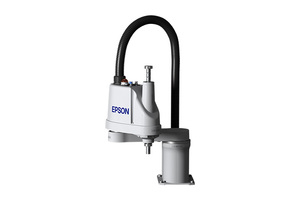

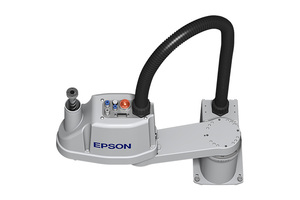

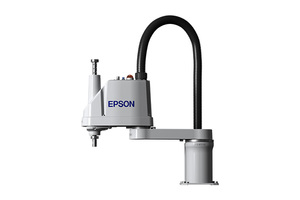

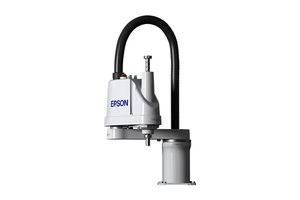

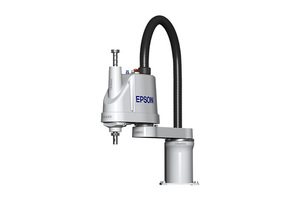

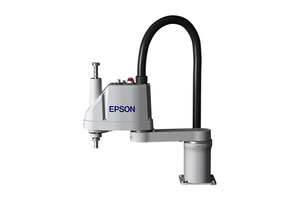

Epson LS3 SCARA Robots - 400mm

High Performance with Low Cost

Fast Cycle Throughput
Industry Leading Ease of Use
400mm Arm Length
ISO 4 Clean Model Available

Epson LS3 SCARA robots are perfect for factories looking for maximum value without giving up performance. They are used for applications such as mechanical or electrical assembly, pick and place, kitting, dispensing and much more. Epson LS3 SCARA's are the robot of choice when price/performance is critical. LS3 SCARA arms come with a 400mm arm length and ISO 4 Clean models are available. With outstanding cycle times, industry leading ease of use and of course Epson reliability, LS3's are the robots of choice.

All Epson LS3 SCARA Robots are available with our low cost, high performance RC90 Controller that provides the ultimate experience in ease of use and reliability all at an incredibly low price. Epson RC+ is the development environment of choice for reducing overall development time with powerful tools and easy to use integrated options such as Vision Guidance, DeviceNet, Profibus, Microsoft .NET support, GUI Builder and much more.

Find Accessories Support

REPLACEMENT PRODUCT :

Epson LS3-B SCARA Robot - 400mm

Model: View Main Product Page Learn More

Overview

As part of our LS-Series robot lineup, the LS6 models are perfect when more reach or payload is required for applications which require high speed but at a lower cost. The LS6 robots come with our RC90 controller which uses the Industry leading RC+ Development Environment and has a host of options available including vision guidance, .NET connectivity, DeviceNet, Profibus, CC-Link, GUI Builder and much more. LS6 robots are ideal for pick and place and simplistic applications although the RC90 has the power to handle more complex applications as well.

High Performance

High speed cycle times to maximize part throughput
Outstanding Accel/Decel Rates with smooth start/stop motion
Top speeds of 6000 mm/sec gets parts moved fast and precisely
Low residual vibration due to powerful proprietary servo system design

Great Value

Performance comparable to more expensive competitive models
Standard and ISO 4 Clean Model available for semiconductor or other industries
Same Epson quality, reliability and support with a reduced price

Best in Class Controller and Development Software

Epson RC+ leads the industry in ease of use to save development time (Now shipping with Epson RC+ 7.0)
Hundreds of language statements and the power to get the job done easily and right the first time
Integrated options to maximize system performance and reduce overall development time (see options page for more details)
High performance processing power many times faster than competitors models

Used for a Wide Variety of Applications adn Industries

Automotive
Hard Drive
Medical
Lab Automation
Consumer Products
Industrial Products
Telecommunications
Pharmaceutical
Packaging
Semiconductor
Electronics

Manuals

View and download product manuals.

Learn More

CAD Drawings

Browse and download available CAD Drawings.

Learn More

Brochures

View and download product brochures.

Learn More

Specifications

Core Specifications:

Arm Length / Reach: LS3-401x: 400 mm J1+J2 (225+175 mm)
J3 (Z): 150 mm (120 Clean)Repeatability: J1 + J2: +/-0.010 mm
J3: +/-0.010 mm
J4: +/-0.010 degPayload (Kg): Max: 3 Kg
Rated: 1 KgCycle Time: LS3-401x: 0.42 secsMaximum Operating Speed: LS3-401x (J1+J2): 6,000 mm/sec
J3: 1,100 mm/sec
J4: 2,600 deg/secOptional Arm Configurations: Mounting Type: Tabletop
Clean: ISO 4 CleanOther: Insertion Force: 100N (10.19 kgf)
U Inertia (Max/Rated): 0.05 / 0.005 kg*m2
Development Software: EPSON RC+ 7.0

Other Specifications:

Motor Wattage: J1: 200Watts
J2: 100 Watts
J3: 100 Watts
J4: 100 WattsUser Lines: Electric: 15 lines
Air: 6mm x 2, 4mm x 1Environmental: Temperature: 5- 40 deg C
Humidity: 10 - 80% (non condensing)Weight: LS3-401x: 14 KgDimensions: Mounting Hole Footprint(mm): 120 x 120 (4-M8)
Z Axis Diameter: 16 mmRobot Cables: 3M (standard), 5M (optional), 10M (optional)
