For Work POS System Devices POS Printers OmniLink TM-L90-i Intelligent Printer
Discontinued

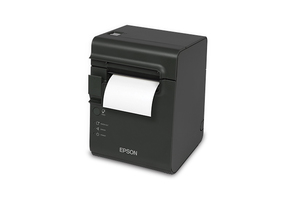

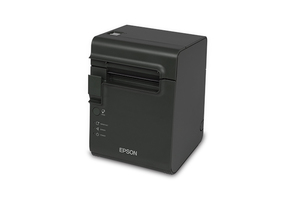

OmniLink TM-L90 Plus-i LFC

OmniLink TM-L90 Plus-i Intelligent Printer

Easy, cost-effective, liner-free label printing for QSRs and food service.

Epson's OmniLink TM-L90 Plus-i LFC combines our cost-effective POS TM-L90 receipt and label printer with a built-in web server. It supports web-based printing from virtually any mobile device, cloud-based services and interactive kiosk displays and is ideal for retailers looking for a flexible, mobile POS system.

REPLACEMENT PRODUCT :
OmniLink TM-L100 Liner-free Compatible Thermal Label Printer
OmniLink TM-L100 Liner-free Compatible Thermal Label Printer
Model: View Main Product Page Learn More
  • Intelligent — open platform for mobile POS deployments, cloud-based services, online ordering, custom Web applications, peripheral device control and more
  • Versatile — enables printing from virtually any smartphone or tablet
  • Compatible — uses Epson-tested, liner-free adhesive labels
  • Efficient — improves order accuracy and customer satisfaction
  • Convenient — triple interfaces, including built-in USB and VGA for flexible connectivity
  • Fast — print speeds of up to 170 mm/sec with 40, 58 and 80 mm print width support options
  • Cost-effective — enhanced print options reduce paper usage up to 30 percent

What's in the box:

  • TM-L90 Plus-i LFC Printer
  • Thermal roll paper (starter roll for operation check)
  • User guide
  • Power supply with AC cable

Print Other:


Printing Technology: Thermal line printingPrint Resolution: 203 x 203 dpiPrint Speed:
  • 170 mm/sec (thermal receipt)
  • 90 mm/sec (label media)

General:


Server Systems: Apache HTTP serverDimensions: 5.5" x 7.9" x 5.8" (140 mm x 148 mm x 203 mm)Weight: Approx. 4.4 lb (2.0 kg)Safety Approvals:
  • EMI standards: VCCI class A, FCC/ICES-003 Class A, CE marking, Canada EMI, AS/NZS CISPR22 Class A
  • Safety standards: UL, CSA, TÜV (EN60950)
  • Environmental standards: WEEE, RoHS compliant
Case Colour: Epson Dark Grey, Epson Cool White

Print Fonts:


Print Fonts: Font (A/B)Column Capacity: 64/48 columnsCharacter Size: 1.13 x 2.13 / 1.5 x 3.0 / 1.0 x 2.0 mm (W x H)Fonts: 9 x 17 / 12 x 24Character Set: 95 Alphanumeric, 37 International, 128 x 11 GraphicBarcode: UPC-A, UPC-E, JAN8 (EAN), JAN13 (EAN), ITF, CODE39, CODE93, CODE128, CODABAR, PDF417, MAXICODE, QR Code

Media Handling:


Tested Media: Visit www.epson.ca/lfctestedmedia for a complete list.Width: 40 mm, 58 mm, 80 mmThickness: 2 mil to 8 mil, depending on media typeRoll Diameter: 4" (102 mm)

Connectivity:


Standard Connectivity:
  • Ethernet interface (100 Base-TX / 10 Base-T)
  • USB and VGA

Hardened PC:


Processor: AMTELInterface:
  • USB 2.0 (2x Device, 1x Host)
  • Ethernet (1x RJ45)
  • VGA (1x D-sub15 Fem)
  • Memory slot (1x microSD)
System Memory: 256MBOperating System: Embedded Linux

POS Details:


Data Buffer: 4K or 45 bytesD.K.D.: 2 drawersSoftware Included: ePOS Device, Server Direct Print, TMNet WebConfig, Easy Setup, ePOS SDKOptions: PS-180 AC adapter, paper roll spacer, wall-hanging bracket WH-10

Power:


Power Consumption: Approx. 30 WPower Source: 24 VDC ± 7%Battery Life: 5 years (Internal calendar and clock)
